Description

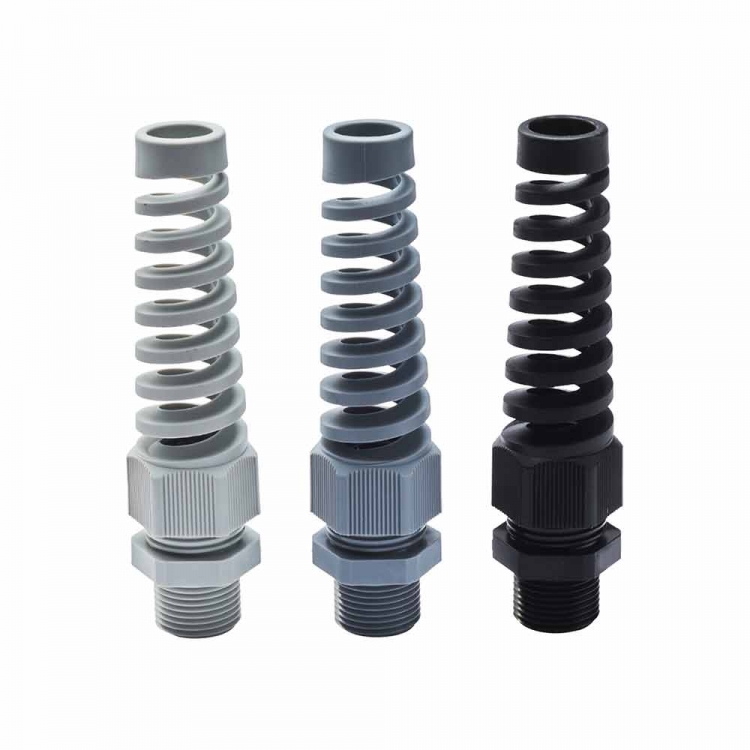

COMPLEX-SN-BS are cable glands with a spiral flex protector. This represents an important measure to protect the cable and provides reliable protection against bending and kinking. Like the standard cable glands COMPLEX-SN, COMPLEX-SN-BS have integrated strain relief and impress with their large sealing and clamping area. They are UV- and weather resistant according to UL 514B.
COMPLEX-SN- BS are mainly used for flexible cables and wires on hand-held devices, moving machine parts and in the many applications in the device industry. They offer additional safe protection against wire breakage and thus a functional guarantee.
Material: Polyamide 6
Temperature range: – 20°C to +100°C
Flammability rating: UL 94 V-2
Protection rating: IP 68 – 5 bar
Approvals: UL, CSA
Test standard: UL 514B
Colors: light grey RAL 7035, dark grey RAL 7001 and black RAL 9005
