Description
COMPLEX-SN-FIX can be assembled and disassembled easily and without tools. You only need to insert the COMPLEX-SN-FIX into a through hole and tighten the fastening nut to the left. Then drive the cable through and tighten the cap nut, this time to the right. The plug-in mechanism predrudes only a few millimeters into the housing and does not obstruct any other components in the interior. By a continuous adjustment the cable gland can be used in housing having wall thicknesses of 1-4 mm.
COMPLEX-SN-FIX are suitable for cable entries in all variants of control cabinets, in switchgear construction, in building technology as well as in refrigeration and air conditioning. With this cable gland, a lock nut is no longer necessary, so there is no longer any need for an internal thread.
Material: Polyamide 6
Temperature range: -20°C to +100°C
Flammability rating: UL 94 V-2
Protection rating: IP 68

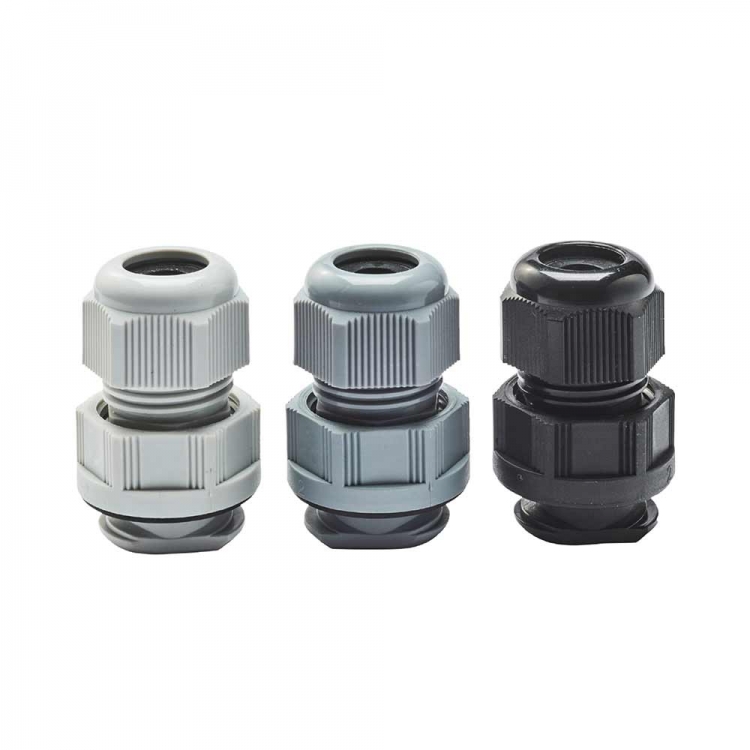

Colors: light grey RAL 7035, dark grey RAL 7001 and black RAL 9005
